TKM 600 SRW

TKM 600 SRW

Explanation

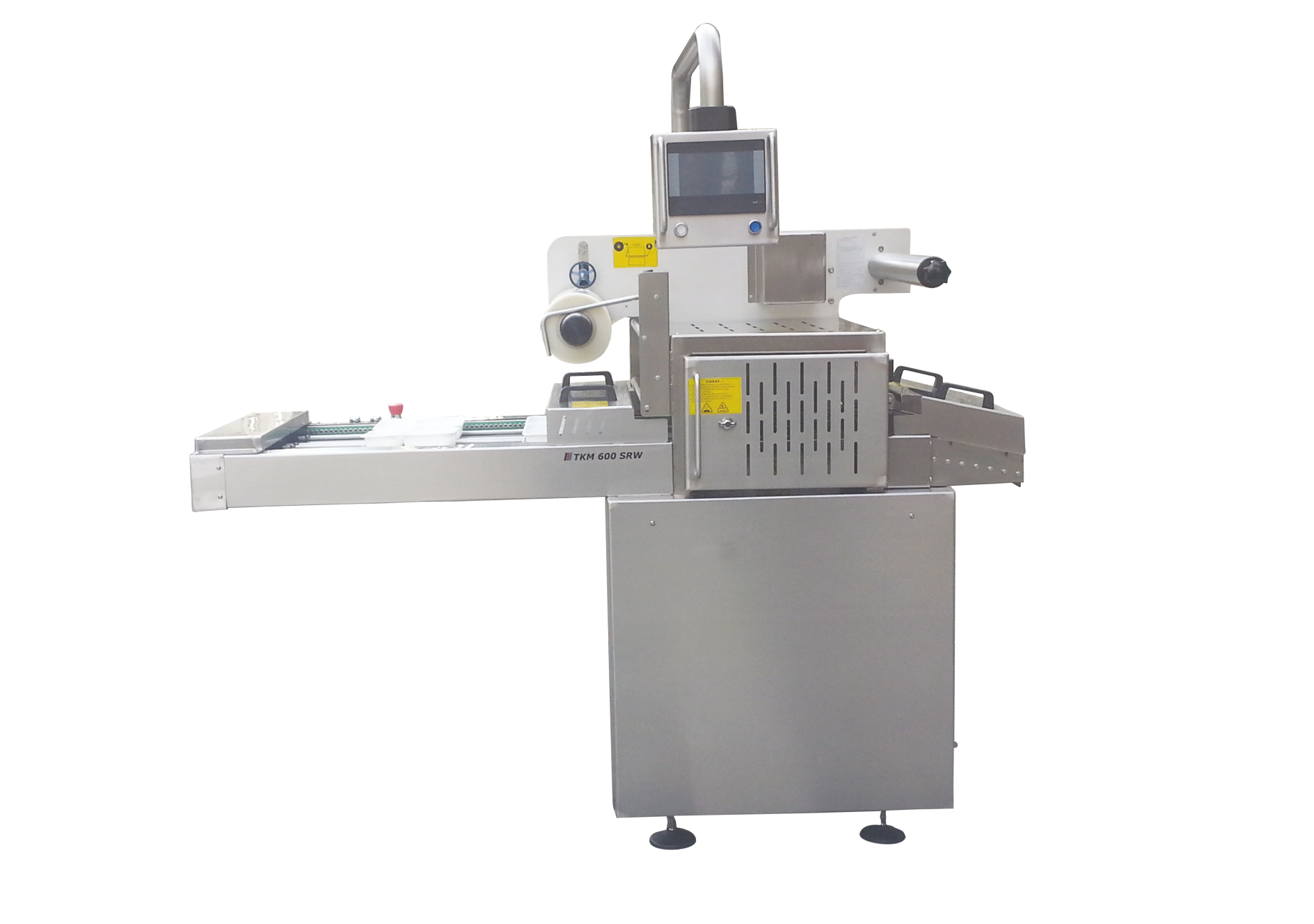

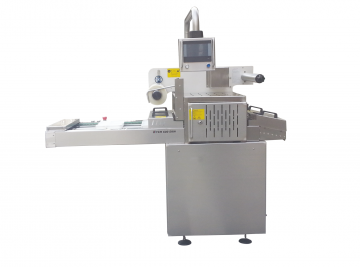

TKM 600 SRW is a model for industry. Completely made of stainless steel. The mold and aluminum parts are eloxal coated. Values can be monitored numerically and graphically with the touch operator panel and any action can be done easily. The machine has printed film, non- printed film options and photocell system. Easy to replace mold system provides low mold cost effectiveness, unlimited mold choice and high performance for line type packaging.
Advantages
– Line type solution on  plate closing

-Automatic drower system
– Labeling, scale, metal detectors etc. can be integrated into discharge band.
– Touch screen Operator panel
– Servo control infeed beld.
– Values are monitored numerically and graphically
– User-friendly with automatic operation counter and other safety and warning sensors
– As the machine speed is controlled, it can be easily integrated to other systems and the machine can be adjusted for different speeds.
– Photocell unit to use printed film.
– Stainless steel body of quality 304
– Eloxal coated aluminum parts
-Teflon-coated mold system
– Automatic film adjustment and waste film discharge system
– More mold cost effective and easy mold replacement with the mold system special to us
– Completely cuts the film around the plate and does not need extra labor
– Easy to clean and hygienic equipment
– Time saving with pneumatic and quick mold system
– Energy saving with automatic temperature control system
– Very easy to transport by stainless steel wheels.
– 2 years warranty
– CE certificate.

TECHNICAL SPECIFICATIONS
Installed power: 220V 50 Hz +PE
Energy consumption: 2.6 kW
Air pressure: max. 6 bar
Air consumption: 4.5lt cycle
Capacity/min :10-14 process
Machine dimensions: 2000mmx750mm x1400mm
Max. mold dimensions: 520x320mm standard
Weight net/packaged: 350 kg, except the pump
Max. plate depth: 120 mm
Max. film width: 520 mm
Min. film thickness: 40 mic
Feed band: 1000 mm
Discharge band: 300 mm
